Prefabricated Steel Structure Car Logistics Center

Introduction

Yuanfu Steel Structure Company has rich experience in designing and constructing one-stop turnkey steel structure projects tailored for customers. Our buildings have the following advantages.

Earthquake resistance: Steel structure has the ability to suppress earthquakes and horizontal loads.

Wind resistance: Light weight, high strength, good rigidity, and strong plasticity.

Durability: Steel components have strong corrosion resistance.

Thermal insulation: High-performance thermal insulation materials. High-strength anti-corrosion is suitable for seaside or humid environments.

Quick and convenient: Quick installation and not affected by seasons.

Environmental protection: The roof can be covered with photovoltaic panels to complete the power system design, solve the problem of electricity consumption, and make steel frame houses a new energy source, a new type of steel structure photovoltaic building.

Our purpose is: Let the new photovoltaic steel structure building illuminate your career and future.

GET A QUOTE

Parameters

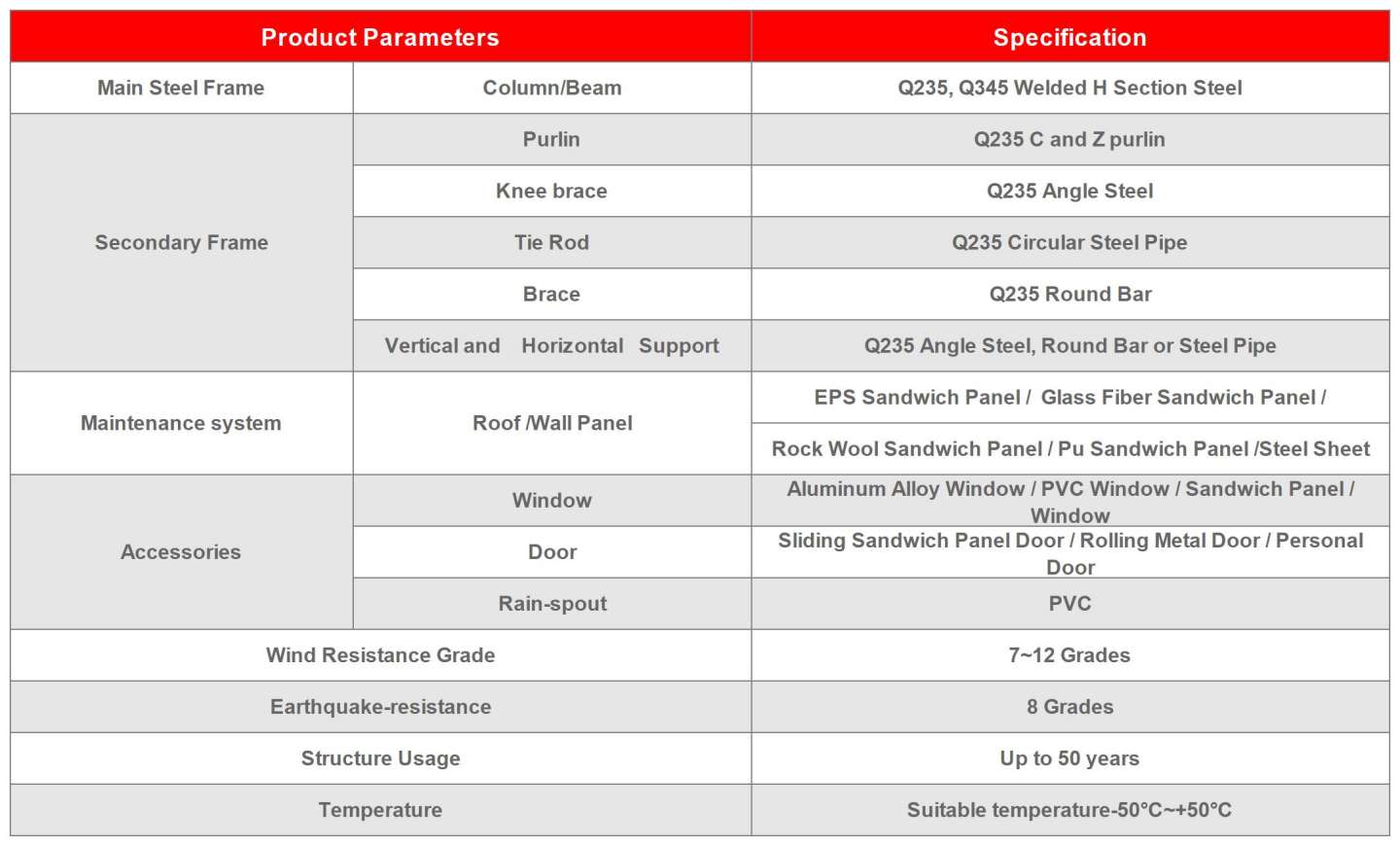

Product Parameters

Yuanfu Steel Structure Engineering Co., Ltd., as a leading steel structure manufacturer, prides itself on providing customized solutions suitable for various industries, from industrial to commercial, from infrastructure to livestock applications. Our commitment to excellence is reflected in our comprehensive quality management system. From raw material quality control to final inspection, we ensure that each steel structure warehouse produced meets the highest quality standards. Quality control is essential to provide safe and reliable storage solutions that stand the test of time and heavy loads, reduce maintenance costs and give customers peace of mind.

Yuanfu steel structure multi-story frame has become the mainstream choice for modern commercial buildings due to its unique advantages.

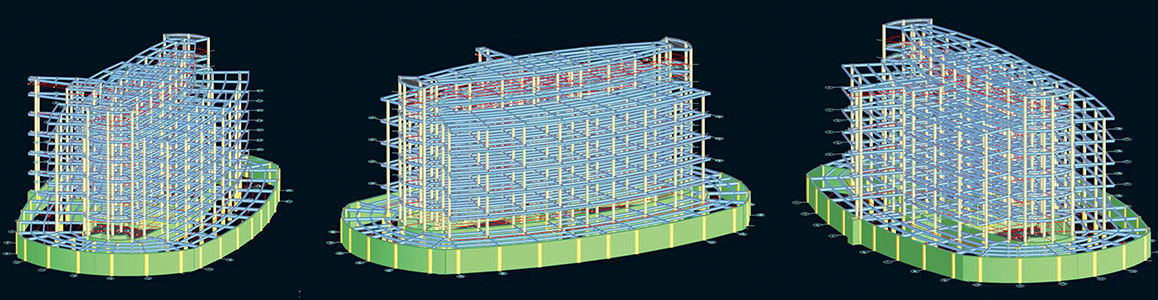

1. Selection of steel multi-story frame system

Yuanfu multi-storey steel structure houses use high-quality steel frames as the main load-bearing structure, and their lateral force resistance system is mainly based on frames and frame brackets. Secondary vertical supports are used as auxiliary to complete the main frame structure of the steel structure building.

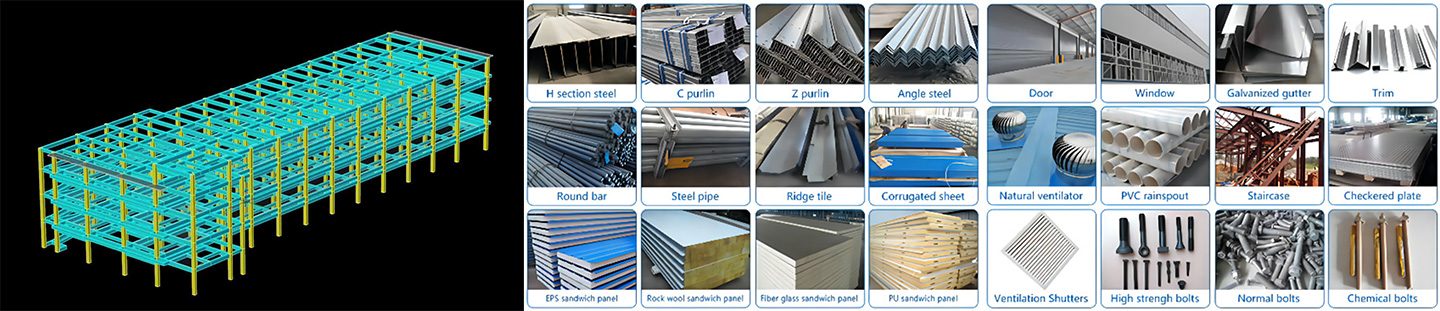

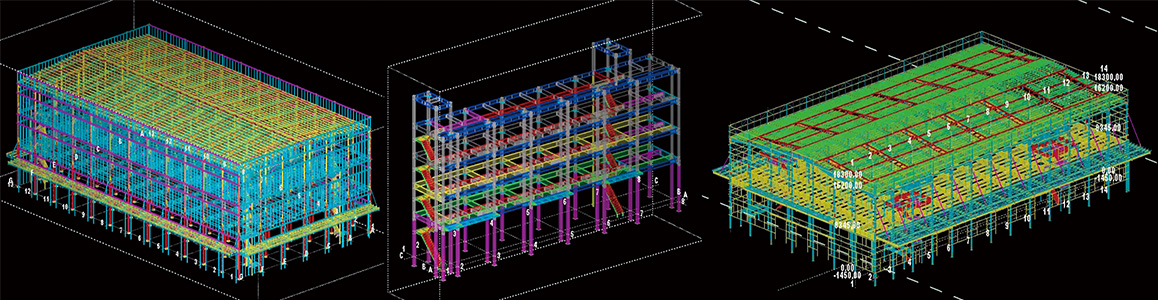

2. Customized layout and component design of steel multi-story frame structures

The column spacing of multi-story steel structure automobile sales center is generally 6 to 10 meters. The frame column is generally a box-section column welded with steel plates. The box-shaped frame column is relatively easy to make a rigid connection with the frame beam in two directions, but when the steel frame-support system is adopted, the frame column can also be welded or hot-rolled H-shaped steel. The frame beam generally adopts welded H-shaped steel or hot-rolled H-shaped steel, and the economic span of the H-shaped steel frame beam is 6 to 8 meters. The secondary beam generally adopts cold-rolled H-shaped steel with narrow flange, and the spacing of steel secondary beams is controlled at 1.5 to 2.5 meters. The frame column adopts vertical support. When the net plane of the column is close to a square, supports can be set at the four corners and the middle part; when the column grid is long, it should be arranged at both ends and the middle part horizontally, and in the middle of the column grid longitudinally, so as to avoid temperature limit deformation at the longitudinal end.

3. Floor design of steel multi-story frame structure

The floor slabs of two-story/multi-story steel structure houses are generally formed by pouring concrete on corrugated steel plates to form composite slabs and non-composite slabs. The corrugated steel plates and steel beams are connected by bolts. The corrugated steel plates in the composite slabs not only serve as permanent formwork, but also as the lower part of the concrete slab. The tensile steel bars and concrete work together to form a composite slab and bear the floor load. The corrugated steel plates in the non-composite slabs only serve as permanent formwork. Regardless of whether they work together with concrete, it is assumed that no composite slab is formed, so it is called a non-composite slab.

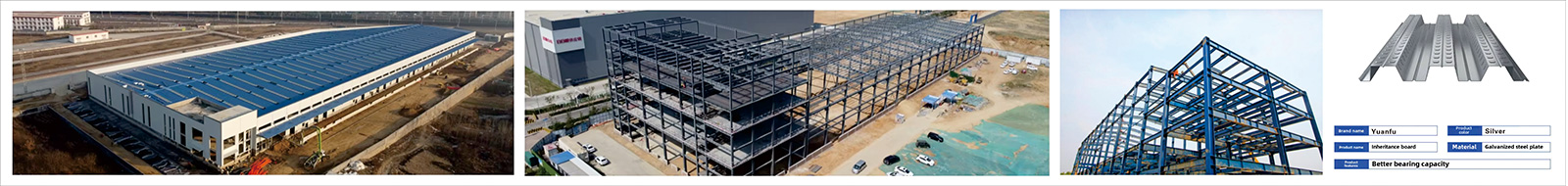

Site Installation

Installation of steel structure office building

--Civil construction and anchor bolt installation must be completed before the steel structure enters the site.

--The construction site must meet the construction requirements, with water and electricity, hardened roads, and flat sites.

--The machines and tools required for construction must be prepared in advance and enter the site according to the construction schedule to meet the construction needs.

--Steel structure building connection process: transportation to the site → acceptance → column → steel beam assembly and installation → support system installation → multi-story steel beam installation → purlin installation → secondary steel structure installation → acceptance.

--Roof structure installation process: preparation work → roof beam installation and alignment → roof purlin installation and fixation → roof support rod and support installation and fixation.

--Two-story structure installation process: column → steel beam assembly and installation → floor slab installation and fixation → steel bar binding → cast-in-place concrete floor slab.

--Wall installation process: preparation work wall panel installation (or wall construction) → door and window installation → edge sealing and finishing.

Factory

Steel multi-storey frame house

1. Selection of steel multi-story frame system

2. Customized layout and component design of steel multi-story frame structures

3. Floor design of steel multi-story frame structure
